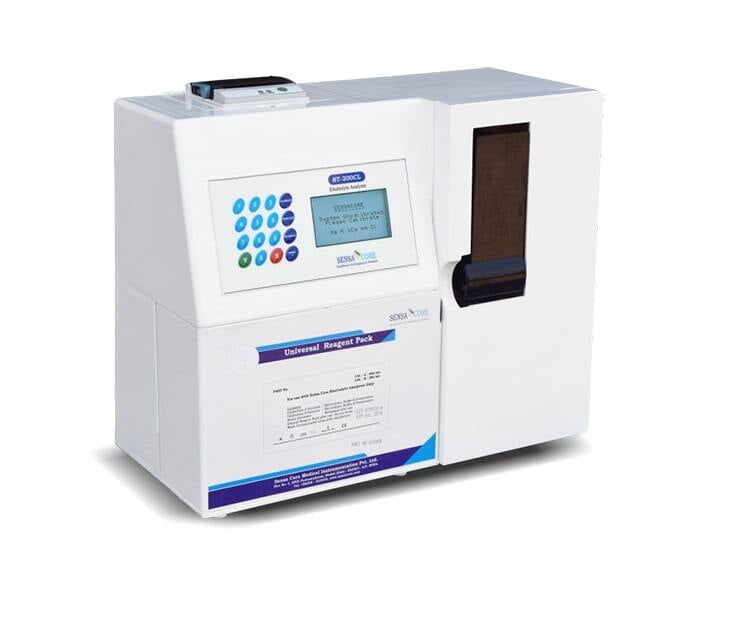

ST-200CL Electrolyte Analyzer
SensaCore’s ST-200 CL Electrolyte Analyzer is a completely automated, microprocessor controlled electrolyte system that uses current ISE technology to make electrolyte measurements. The ST-200CL product measures various combinations of sodium, potassium, Ionized Calcium, Lithium, pH and Chloride in whole blood, serum, plasma, and urine.Sensa Core's ST-200CL / 200Plus / 100B Electrolyte Analyzer products are specifically designed to meet the needs of small to medium-size laboratories by Inventing and developing the latest technology, Sensa Core’s Electrolyte Analyzers improve lab productivity while delivering sample results economically. Snap-in electrode design, combined with precise control of calibrator volumes, ensure economical operation and a low cost per sample in our Analyzers.
Maintenance of Sensa Core's Electrolyte Analyzers is limited to the replacement of Reagent Pack, Maintenance-Free Electrodes, Disposable Valve and Pump Tube which is just plug and play. Depending upon customer requirement ST-200CL is Available in two variants in terms of the Sampling procedure.
ST-200CL Flip based AnalyzerST 200CL Slider based Analyzer



Sample Volume | 110 µL |
Sample Type | Whole Blood, Serum, Plasma, CSF & Diluted Urine |
Parameters | Na, K, iCa, Cl, Li, pH |
External Integration | LIS Integration (Serial Port) |
Dimensions | 15 Width x 12 Length x 7 Height (Inch) |
Weight | 8 Kg |
Colour | Pearl White |
Pump Mechanism | Long Lasting Comprehensive Lyte |
Sample Storage | 100000+ |
Language/s | Mono Languages (English) |
Auto Sampler | Not Available |
Principle | Direct Measurement with ISE |
Parameter Combinations | 10 Combinations |
Keypad | Alphanumeric |
Operating System | Embedded C |
External Battery | Available (Optional) |
Input Voltage | 110/115-V AC, 50-60 Hz or 220V AC, 50-60 Hz, 0.75 amp. |
Print Result | 2 Inch 24 Column Thermal Printer |
Operating Atmosphere | Temperature: 5 - 40 Degrees C, <85% Moisture |
Acquirable Results / Hour | 60 Results |
Result Time | 55 Seconds |
Sample Mechanism | Semi Auto Sampling (Flip/Slider) |
Display | 128*64 Alphaneumeric Display |
